Z-Pile HR® | Z-Pile CF®

Z-type sheet piles are the most efficient type of sheet pile in use today. Our Z-Pile systems feature interlocks strategically positioned at a considerable distance from the neutral axis, optimizing shear transmission and enhancing the strength-to-weight ratio. Z-profile sheet pile is predominantly used in retaining walls, floodwalls, parking garages, containment walls, cofferdams, bulkhead walls for ports, and fortifying dams.

Overview

Enhanced strength with flexible design.

THE Z-PILE:HR® SYSTEM FEATURES an enhanced strength with flexible design.

AN INCREASED WIDTH PER PANEL AND LOWER WEIGHT PER SQUARE FOOT OR METER OF WALL COMPARED TO ALTERNATIVE TRADITIONAL Z-SHAPED SHEET PILE DESIGNED TO DRIVEN IN PAIRS.

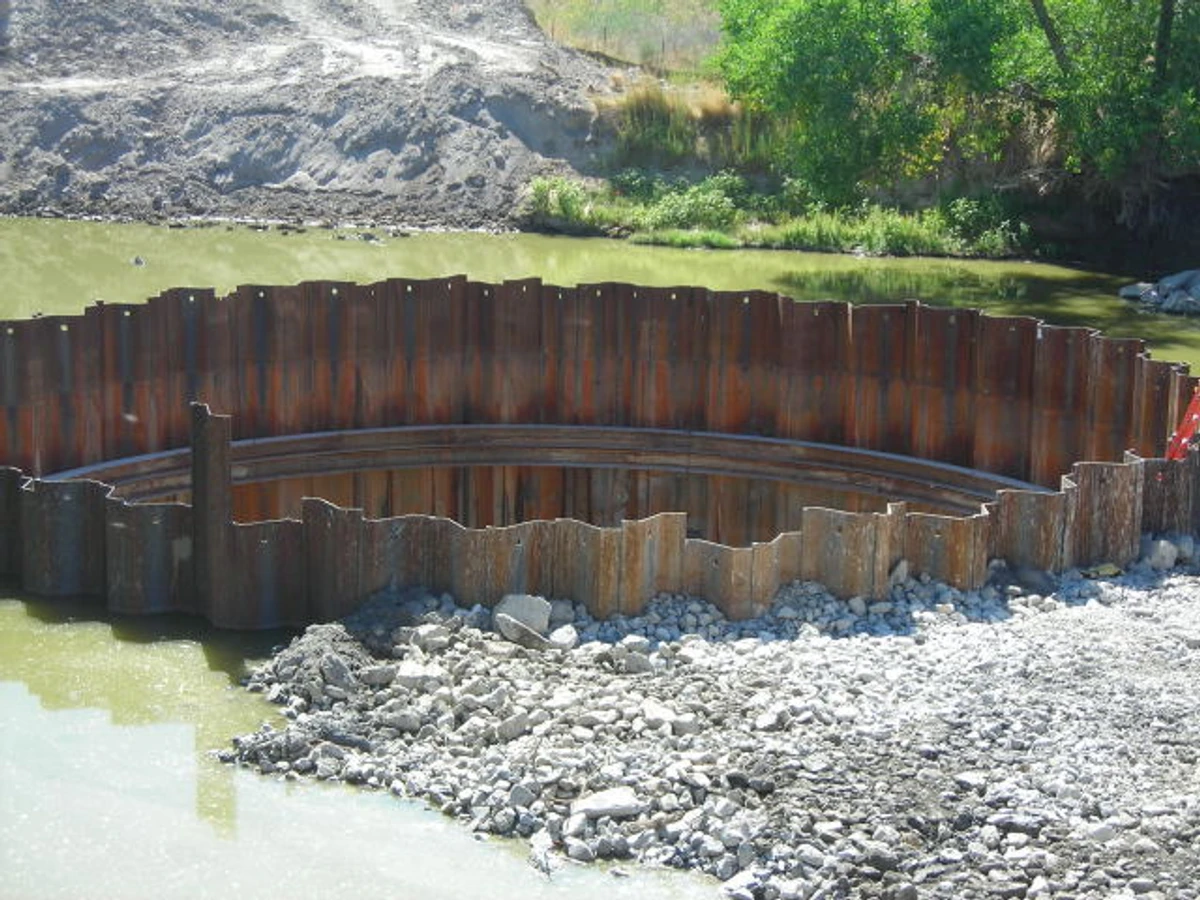

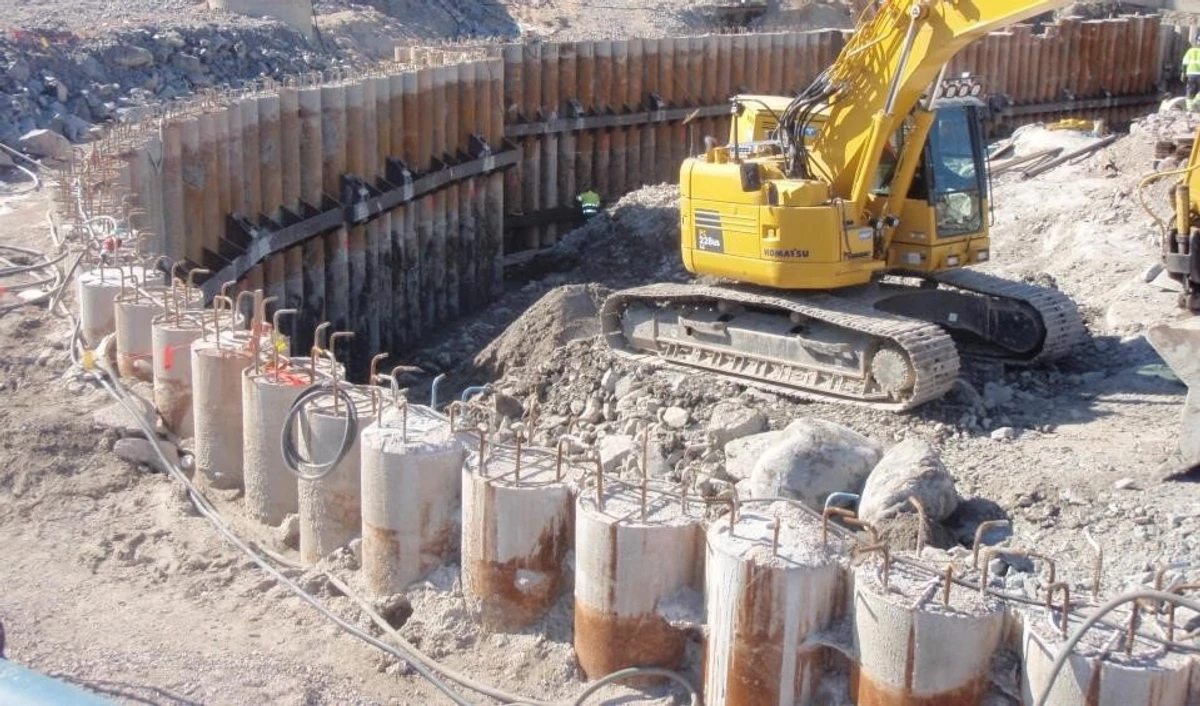

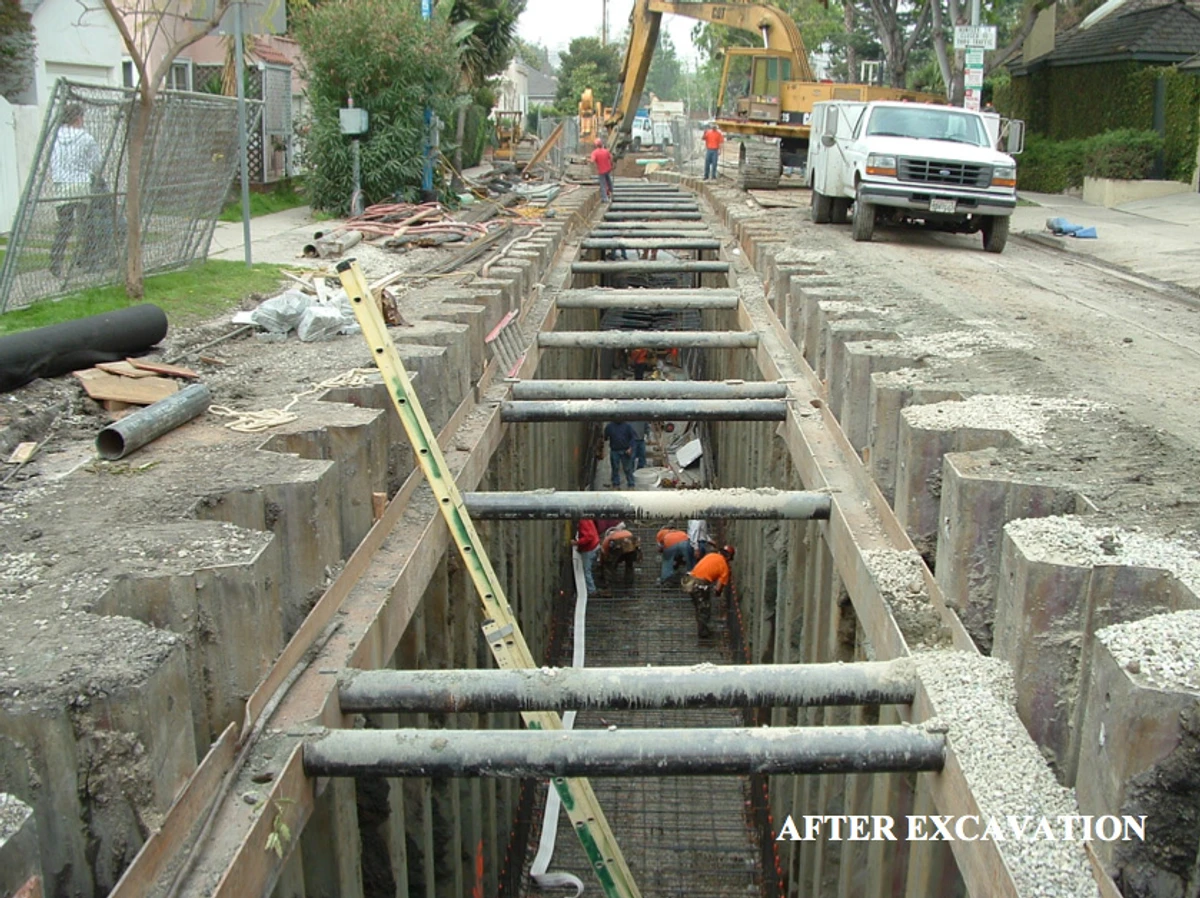

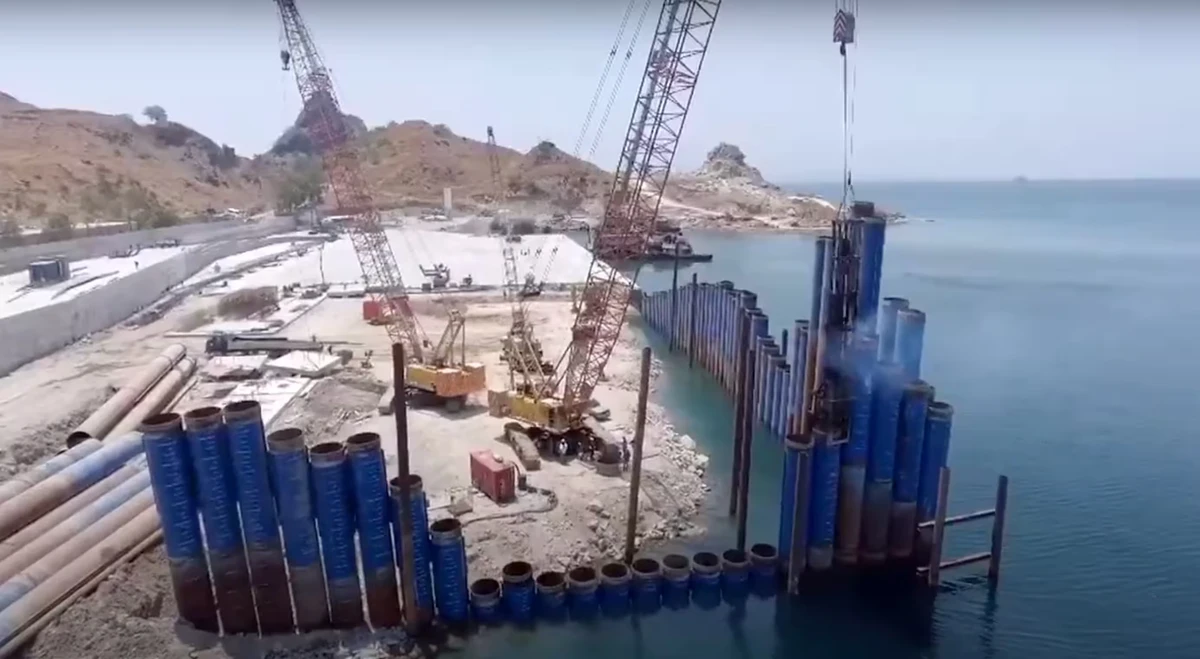

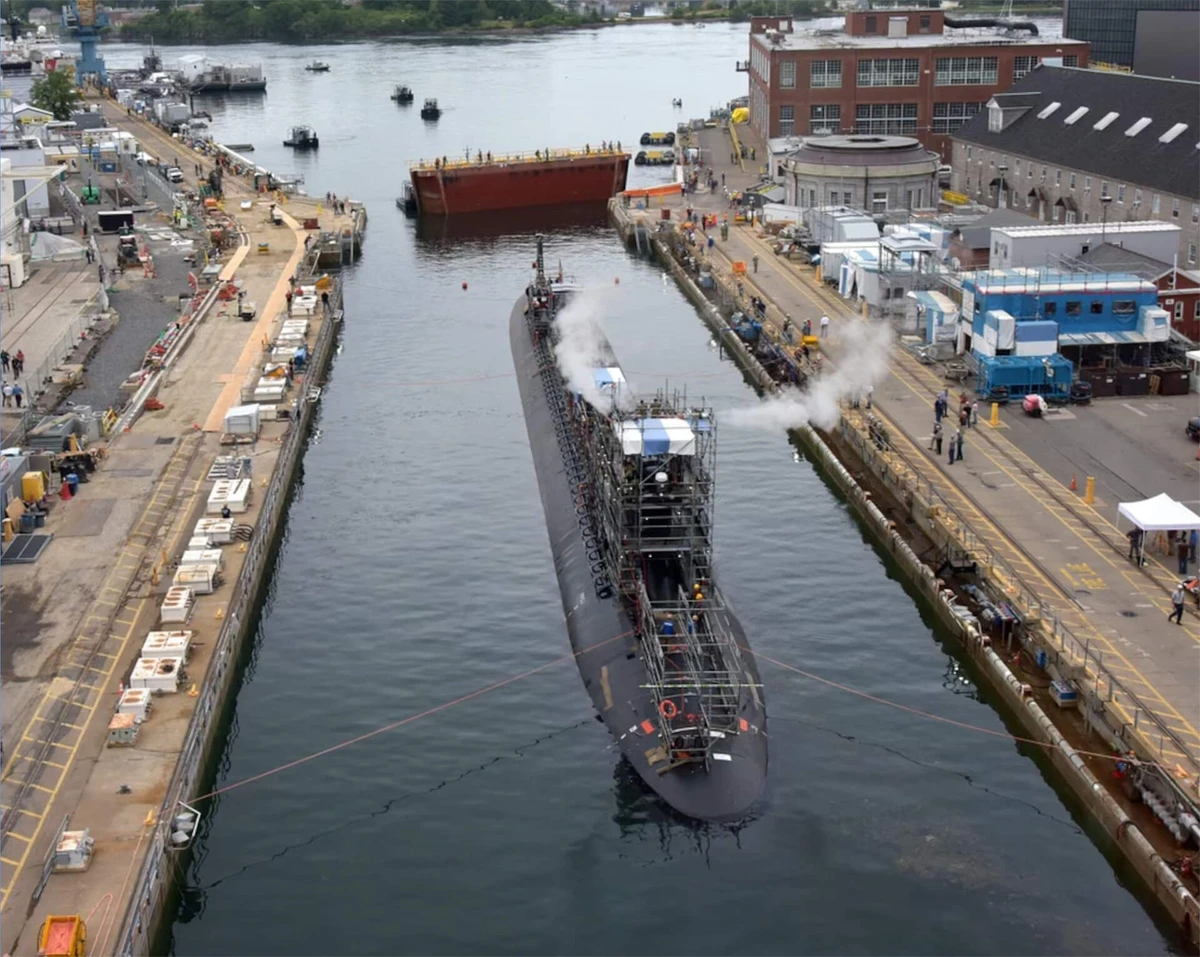

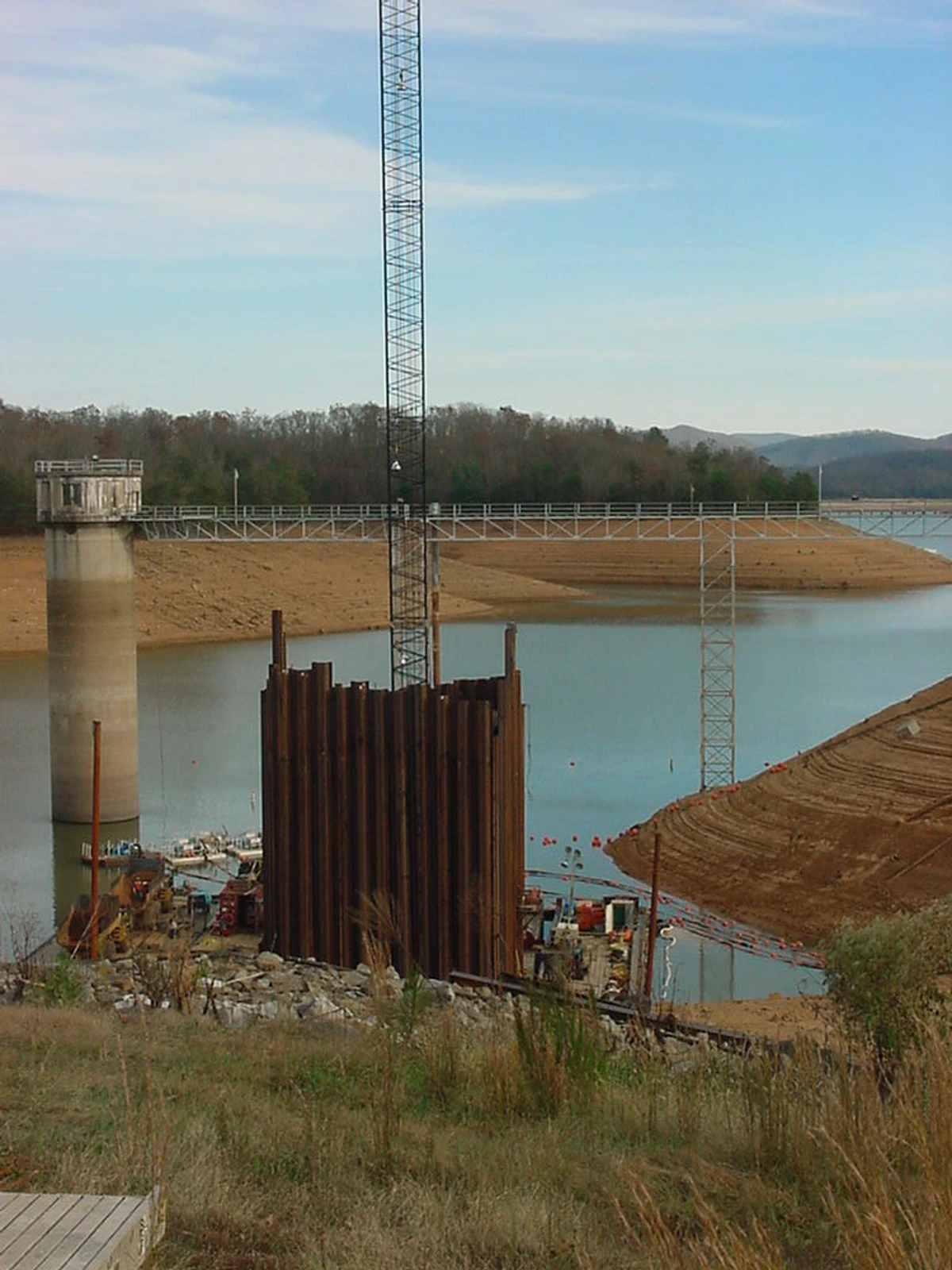

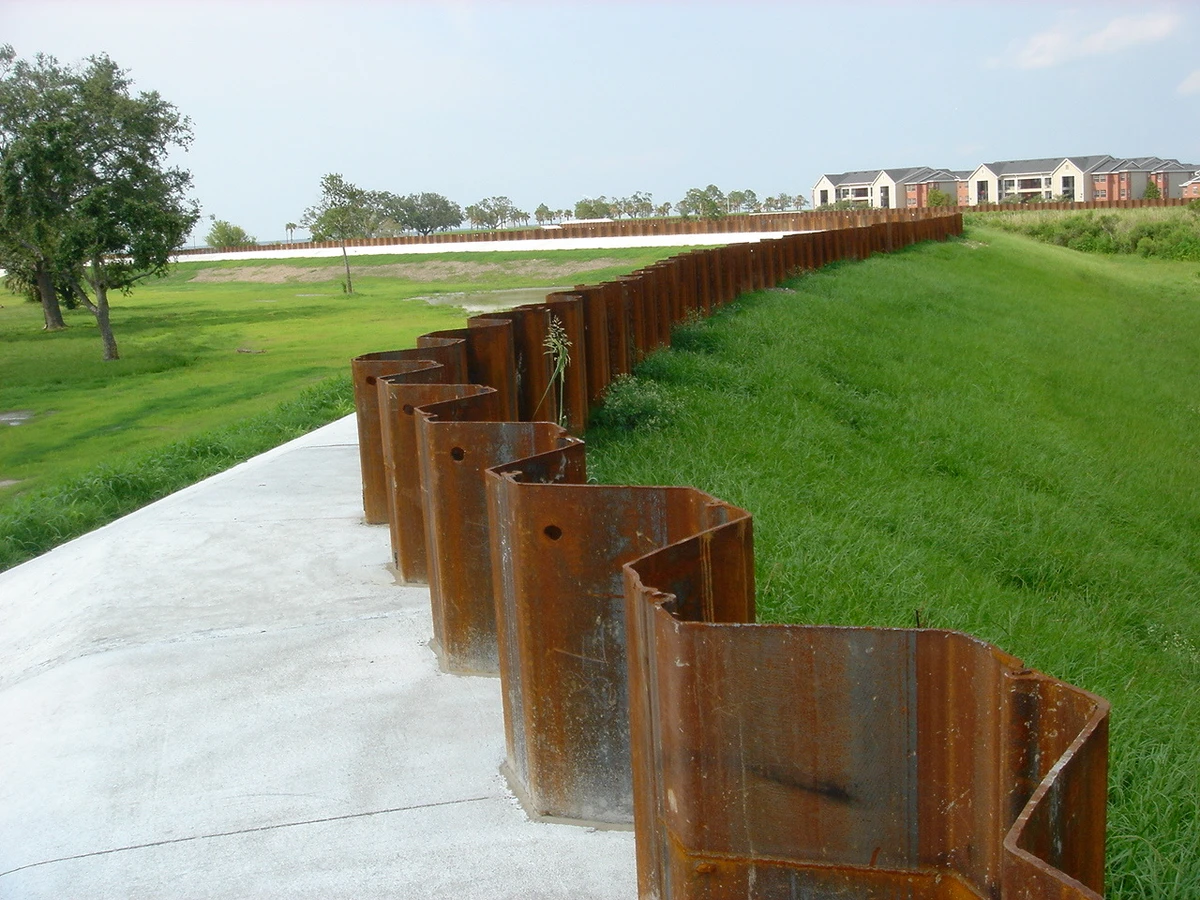

Our Z-Pile:HR® is hot rolled sheet pile system with interlocks strategically positioned at a considerable distance from the neutral axis. This placement optimizes shear transmission and enhances the strength-to-weight ratio of the system. Z-profile sheet pile is predominantly used in retaining walls and floodwalls, as they are strong enough to help reinforce structures that must withstand constant pressure from one or both sides. They can also be used to create containment barriers for tighter, more specific protection. They are also used in parking garages, containment walls, cofferdams, bulkhead walls for ports, and fortifying dams.

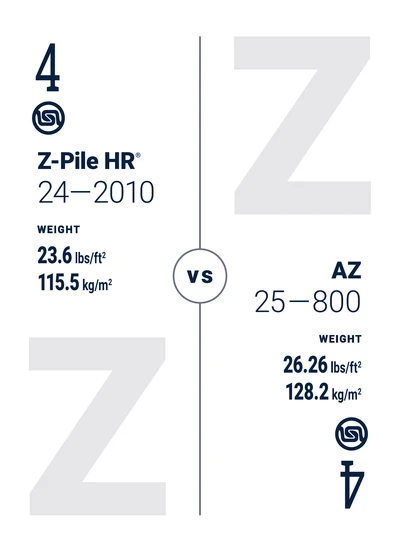

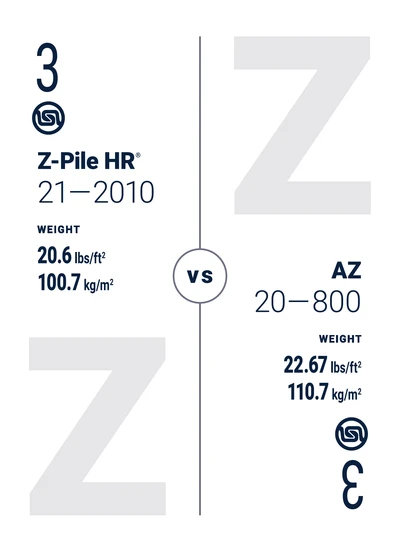

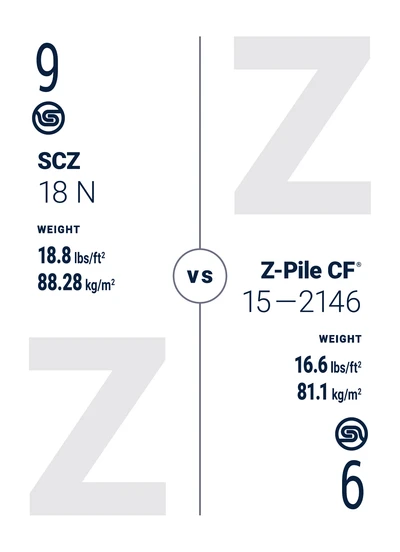

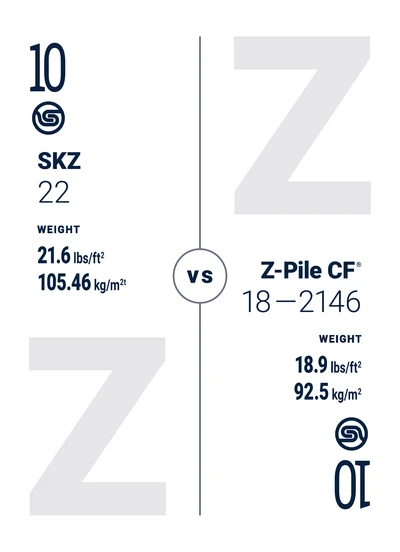

The Z-Pile:HR® sheet pile system features an increased width per panel compared to alternative Z-shaped sheet pile designs. This enhanced geometry results in an efficiency ratio (determined by dividing the section modulus by the weight) that substantially exceeds that of most of not all older Larssen sheet pile sections. Our Z-Pile offerings are available in various configurations to meet your specific requirements, complete with integrated connectors, enabling the construction of diverse geometries in the most efficient manner possible. Additionally, our Z-Pile:HR® can be installed either as single sheets or in pairs, allowing for more flexibility in construction. Our ability to offer wider and lighter sheet pile configurations translates to quicker, more competitive, and value-driven solutions for our clients.

Key features include:

Flexible design
Enhanced strength to weight ratio
Increased width per panel compared to alternative Z-shaped sheet piles, increasing the efficiency ratio

Tools

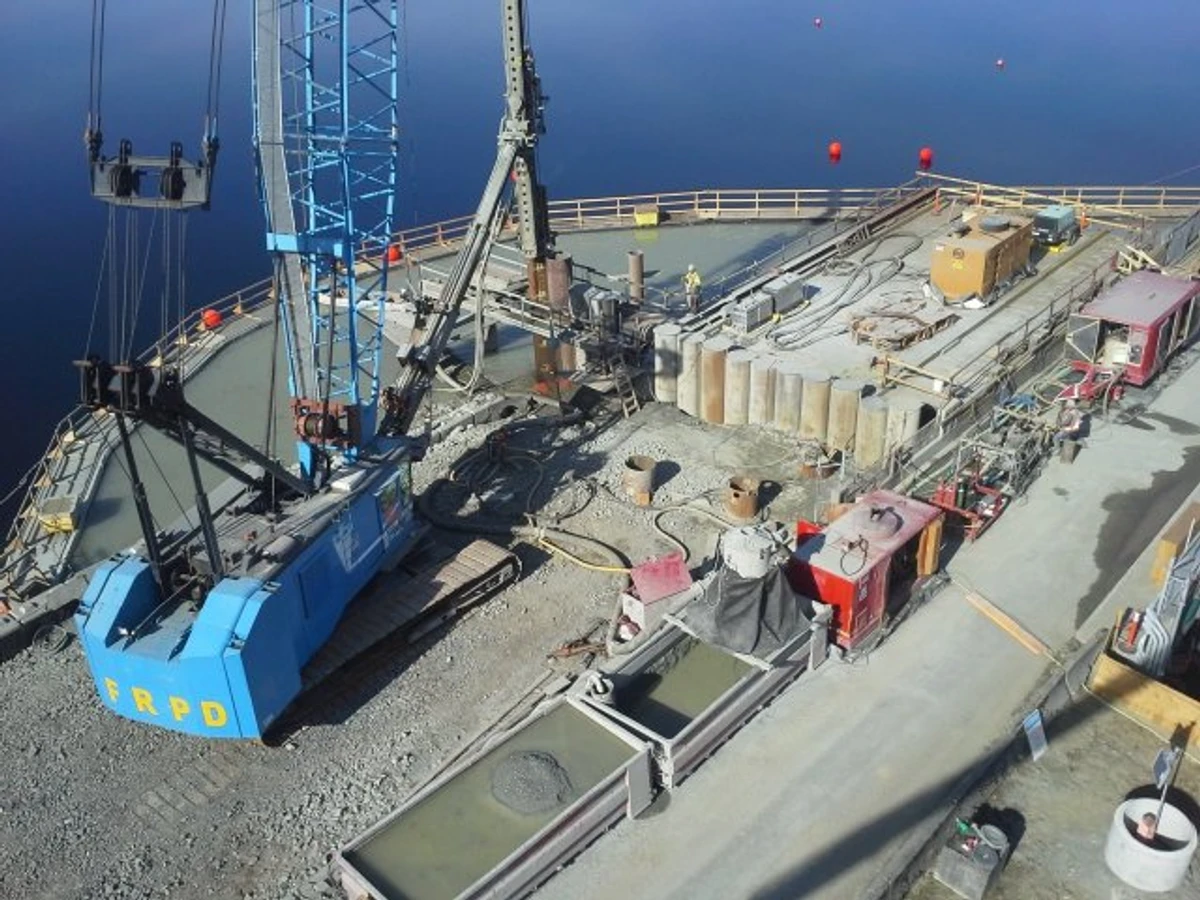

To achieve optimal installation results and efficiency with our Z-Pile:HR® system, we recommend using specialized hot-rolled pile driving equipment. Proper tool selection ensures structural integrity, worker safety, and project timeline adherence.

Request Tools Consultation

Downloads

CAD Files: Z-Pile:HR®

Data Sheets: Z-Pile HR®

Installation

Professional Installation Services

Our team of certified installers ensures proper installation of Z-Pile systems for optimal performance and longevity. Schedule a consultation to discuss your project requirements.

WADIT® Certification Program

Get certified in WADIT® application and installation techniques. Our comprehensive training program covers best practices for sealing sheet pile interlocks.
